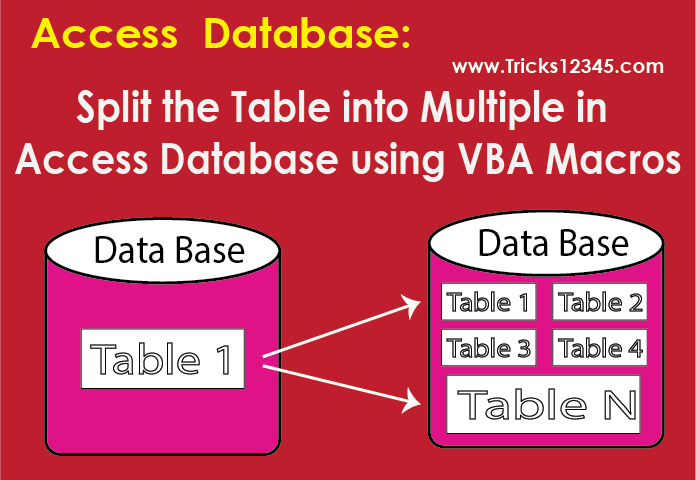

Split the Master Table into Multiple



  • In this video i explained how to split the Primary table into multiple child tables
  • Click on below image to watch video
  •

    Download the Workbook



    Public TableNames As String, CancelSub As String

    Sub Split_The_Master_DataBase_Into_Multiple_Tables()

    ' Import The Liabraries
    'Microsoft Access 16.0 Object Liabrary
    'Microsoft Active X Data Objects 6.1 Liabrary

    'Define The Varaible to select the Access DataBase file
    Dim FileName As String

    'Save The Access DB file path into the variable
    FileName = Application.GetOpenFilename()

    'Define the variable to establish the ADODB Connection
    Dim Con As New ADODB.Connection

    'Define the connection String
    Con.ConnectionString = "Provider=Microsoft.ACE.OLEDB.12.0;" & _
    "Data Source=" & FileName & ";" & _
    "User Id=admin;Password="
    'Open the connection
    Con.Open

    'Define Record Set variable
    Dim rs As New ADODB.Recordset

    'Open the Record set with the help of SQL Query
    With rs
    .ActiveConnection = Con 'Activate the connection
    .Open "Select Distinct Item from Sales"
    End With

    'Add all the unique records to the listbox of the Userform
    Do Until rs.EOF
    UserForm1.ListBox1.AddItem rs.Fields(0).Value
    rs.MoveNext ' enables to move to next row in the Access Table
    Loop

    'Nullify the Record set
    Set rs = Nothing

    'display the Userform
    UserForm1.Show

    'Exit the Program if the user clicks on CANCEL button in userform
    If CancelSub = "Yes" Then
    Exit Sub
    End If

    'Split the Table Name by using ;
    PostSplitTableNames = Split(TableNames, ";")

    'Define the variable to create the table name
    Dim TblName As String

    'Using the for loop to create the tables based on selected items in List box
    For TNumb = 0 To UBound(PostSplitTableNames)
    'Save the table name into the variable
    TblName = PostSplitTableNames(TNumb)

    'Define the variable to create record set
    Dim SalesRs As New ADODB.Recordset

    With SalesRs
    'Activate the connection
    .ActiveConnection = Con
    'Open the record set
    .Open "Select * from Sales where Item = '" & TblName & "'"
    End With

    'Create table by using sequel(SQL) syntax
    Con.Execute "Create table " & TblName & " (Item varchar (15),Quantity int, Price int, Region varchar(11), Period int)"

    'Loop through Record set

    Do Until SalesRs.EOF
    'Save the data into respective variables
    Item = SalesRs.Fields(0).Value
    Quantity = SalesRs.Fields(1).Value
    Price = SalesRs.Fields(2).Value
    Region = SalesRs.Fields(3).Value
    Period = SalesRs.Fields(4).Value

    'Insert the values into the table
    Con.Execute "insert into " & TblName & " values ('" & Item & "', " & Quantity & ", " & Price & ", '" & Region & "', " & Period & ")"
    ' Moves to next row in record set
    SalesRs.MoveNext
    Loop

    'Nullify the record set variable
    Set SalesRs = Nothing
    Next
    'Close the connection
    Con.Close
    'nullify the variable memory
    Set Con = Nothing
    'Automation completion message
    MsgBox ("Hi Copied the data into respective tables in Access Database")
    End Sub
