Enter the Header



    Private Sub CommandButton1_Click()
    ActiveSheet.ListObjects.Add(xlSrcRange, Range("$B$6:$H$16"), , xlYes).Name = "Sales"
    End Sub





    Classification of Tables



  • We can classify the tables into 3 categories
  •

  • First select data and create table through INSERT TAB
  •

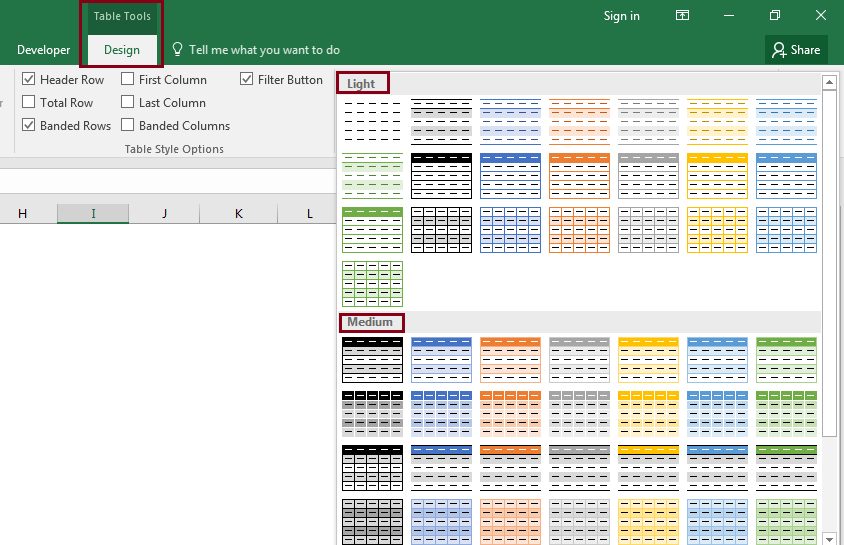

  • Click on Table then DESIGN tab will display on screen
  •

  • In DESIGN tab we can find different types table desings, we were classified into
  •

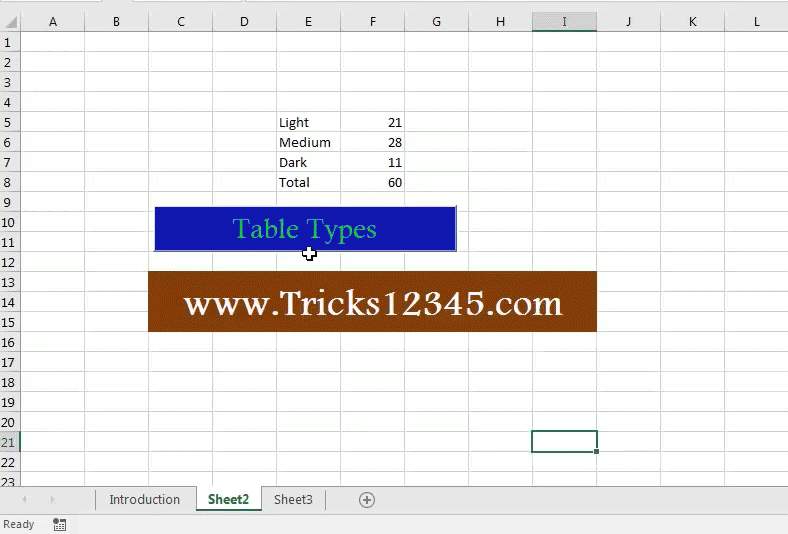

    Light - 21

    Medium - 28

    Dark - 11





  • Through this program we can design different types of tables, by creating new workbook
  •

  • Each sheet consists of UNIQUE desing of table
  •







    Create - Read - Edit - Delete Table





    Download The Workbook



    Sub Create_Table()
    'www.Tricks12345.com

    Dim Sh2 As Worksheet
    Set Sh2 = ThisWorkbook.Sheets("sheet2")

    Sh2.Range("B3").CurrentRegion.Select

    Sh2.ListObjects.Add(xlSrcRange, Selection, , xlYes).Name = "Sales_Data"
    Sh2.ListObjects("Sales_Data").TableStyle = "TableStyleDark7"

    End Sub


    Sub Read_Table()
    'www.Tricks12345.com
    Dim Sh2 As Worksheet
    Set Sh2 = ThisWorkbook.Sheets("Sheet2")

    'Select through range method
    Sh2.Range("Sales_Data").Select

    Max_Columns = Sh2.Range("Sales_Data").Columns.Count
    MsgBox "This table consists of " & Max_Columns & " Columns"

    ' How to connect columns
    For i = 1 To Max_Columns
    With Range("Sales_Data").Columns(i)
    .Select
    .ColumnWidth = 15
    .Font.Size = 15
    .Font.ColorIndex = 5
    .Font.Name = "Footlight MT Light"
    .HorizontalAlignment = xlCenter
    End With
    Next

    ' How to connect rows
    Max_Rows = Sh2.Range("Sales_Data").Rows.Count
    MsgBox "This table consists of " & Max_Rows & " Rows"

    For i = 1 To Max_Rows
    With Range("Sales_Data").Rows(i)
    .Select
    .RowHeight = 20

    End With
    Next





    'Header Formatting
    Sh2.ListObjects("Sales_Data").HeaderRowRange.Select
    With Selection

    .RowHeight = 20
    .Font.Size = 15
    .Font.ColorIndex = 5
    .Interior.ColorIndex = 6
    .Font.Name = "Footlight MT Light"
    .HorizontalAlignment = xlCenter
    End With


    End Sub




    Sub Add_Delete_Rows_Columns()
    'www.Tricks12345.com

    Dim Sh2 As Worksheet
    Set Sh2 = ThisWorkbook.Sheets("Sheet2")

    'To add the row at the last
    Sh2.ListObjects("Sales_Data").ListRows.Add

    'To add the Column at the last
    Sh2.ListObjects("Sales_Data").ListColumns.Add

    'Delete first row
    Sh2.ListObjects("Sales_Data").ListRows(1).Delete

    'Add column in second position
    Sh2.ListObjects("Sales_Data").ListColumns.Add 2

    With Sh2.ListObjects("Sales_Data").ListColumns(2)
    .Name = "Hello"
    .DataBodyRange.Value = 15

    Max = .DataBodyRange.Cells.Count
    For i = 1 To Max
    .DataBodyRange.Cells(i).Value = 110 + i
    Next

    End With

    End Sub





    Sub Delete_Replace()
    'www.Tricks12345.com
    On Error Resume Next
    Dim Sh2 As Worksheet
    Set Sh2 = ThisWorkbook.Sheets("Sheet2")
    Sh2.ListObjects("Sales_Data").Delete

    ' Add values from sheet3
    ThisWorkbook.Sheets("Sheet3").Activate
    Sheets("Sheet3").Range("A1").CurrentRegion.Select
    Selection.Copy Sh2.Range("B3")

    End Sub
