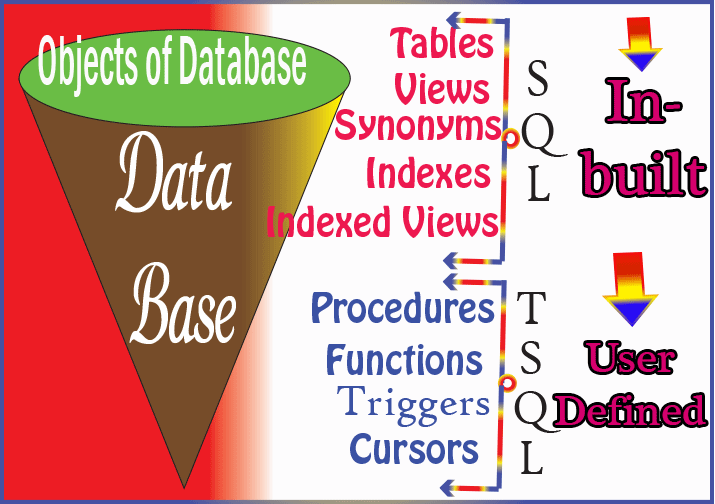

Objects of DATABASE?

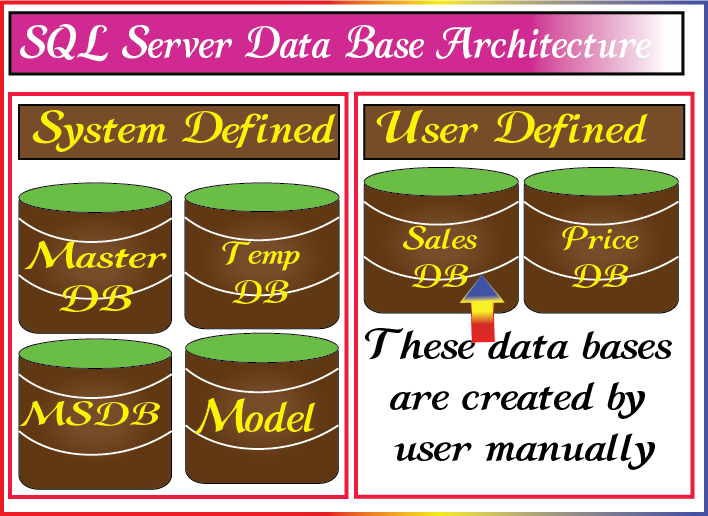

    Explain about SQL SERVER database Architecture?





    Whenever we install SQL Server, it installs with 4 system Databases



    • Master Database
    • System Database
    • Temp Database
    • Model



    Inaddition to above SQL Server allows users to create Database manually



    Explain about SYSTEM DATA BASES?



    • These are created along with installation by SQL Server
    • These are mandatory in database
    • These data bases are useful to perform adiministation related tasks

    Master Database

    • It records all login accounts and system configuration settings
    • It records all system level information

    Model

    • It is termed as TEMPLATE database
    • It is used as template for all the databases created on a system

    Tempdb

    • It consists of all temporary tables and stored procedures
    • SQL server recreates everytime whenever we restarted

    MSDB

    This database is useful for:

    • Backups
    • Support Jobs
    • Alerts

    USER DEFINED DATABASES

    • These are created by users
    • These are for developers

    How to create USER DEFINED DATABASES?

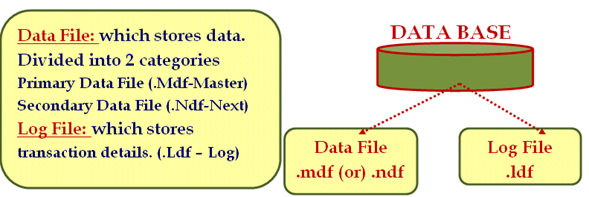

    Database size depends two type files:

    • Data File
    • Log File

    Data file consists of:

    1)Primary Data file

    2)Secondary Data file

    Primary Data File

    • It consists of extension .mdf
    • MDF represents to MASTER DATA FILE
    • Every database consists of at least one Primary datafile that keeps track of all files

    Secondary Data File

    • It consists of extension .ndf
    • ndf represents to NEXT DATA FILE
    • It holds all the data which doesn't fit into PRIMARY file
    • If PRIMARY holds all the data, secondary file doesn't have

    Log Files

    • It consists of extension .ldf
    • LDF represents to LOG DATABASE FILE STRUCTURE
    • Every database should consists of at least one log file

    Note: System defined databases are not possible to modify, where as user defined databases can modify.
